Name: Jetex Modular AHU Tailor Air Solutions for Industrial Or Commercial HVAC Project
Brand: GUANGZHOU JETEX-LLOYD'S MACHINERY LTD
SKU: AHS series
Availability: InStock

Casa > prodotti > Unità di trattamento dell'aria >

Jetex Modular AHU Tailor Air Solutions for Industrial Or Commercial HVAC Project

modular AHU for HVAC projects

industrial air handling units

commercial HVAC tail air solutions

Place of Origin:

Guangzhou, Guangdong, China

Marca:

JETEX

Certificazione:

ISO quality system certification/CRAA

Model Number:

AHS series

Contattici

Richiedi un preventivo

Jetex Modular AHU Tailor Air Solutions for Industrial Or Commercial HVAC Project

Dettagli del prodotto

Air volume:

2000m³/h-300000m³/h

Function:

Cooling, heating, humidifying, dehumidifying, filtering, purifying and sterilizing

Panel material:

Double-layer insulation , color steel plate, galvanized steel plate, stainless steel plate(Optional)l

Name:

Modular Air Handling Units

Fan:

Volute/Non-volute Fan /EC fan options available

cooling capacity:

12kw-5000kw

Evidenziare:

modular AHU for HVAC projects

industrial air handling units

commercial HVAC tail air solutions

Termini di trasporto & di pagamento

Minimum Order Quantity

One

Prezzo

Negoziabile

Packaging Details

Specialized packaging film

Delivery Time

According to your order

Payment Terms

Western Union,MoneyGram,T/T

Supply Ability

1000 units per month

Prodotti correlati

Jetex Industrial Cooling Air Handler with EC Fan Retrofit Solutions

Ottenga il migliore prezzo

Jetex Air Handling Unit (AHU) For HVAC Air System

Ottenga il migliore prezzo

Jetex Customized Water-cooled HVAC Air Handler Unit With ISO

Ottenga il migliore prezzo

Jetex Industrial Cabinet AHUs For Manufacturing Applications

Ottenga il migliore prezzo

Contattici

＋86 18028849848

jetex@21cn.com

86-20-34550929

Contatto ora

Descrizione di prodotto

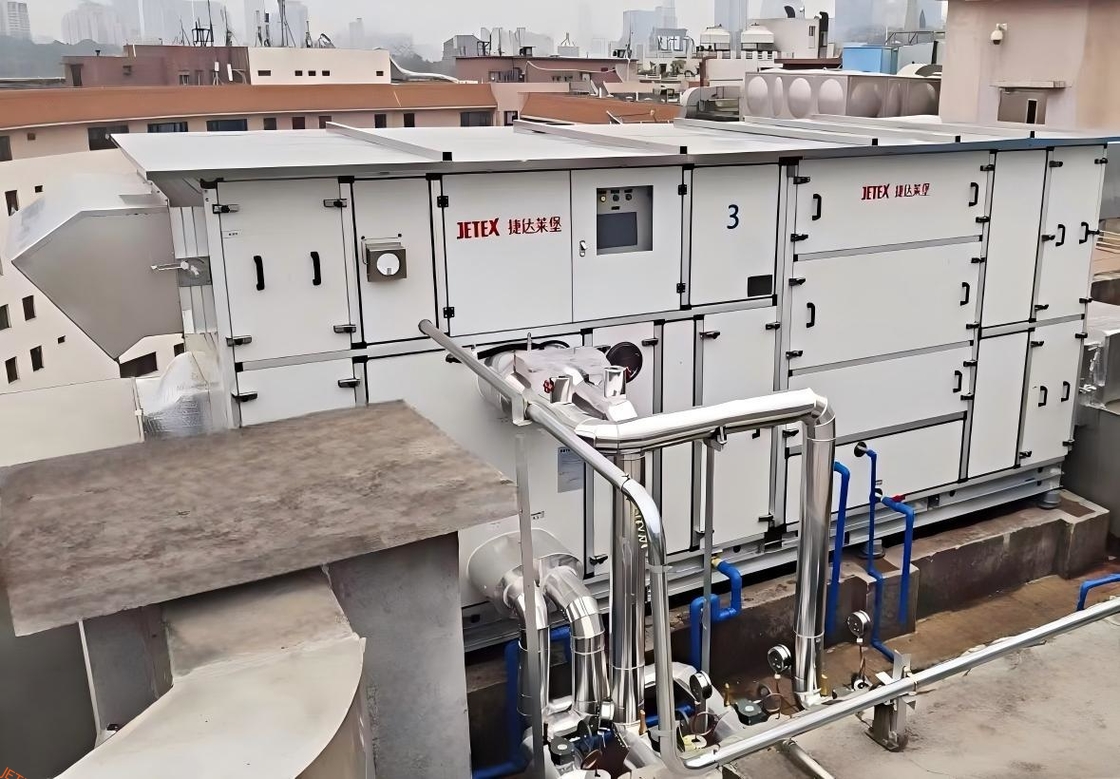

Jetex Modular AHU Tailor Air Solutions for Industrial or Commercial HVAC Projects

Key Features

Air volume range: 2000m³/h - 300000m³/h
Multiple functions: Cooling, heating, humidifying, dehumidifying, filtering, purifying and sterilizing
Panel material options: Double-layer insulation, color steel plate, galvanized steel plate, stainless steel plate
Fan options: Volute/Non-volute Fan or EC fan available
Cooling capacity range: 12kW - 5000kW

Product Description

Modular air handling units offer a higher level of customization, built to order to meet specific requirements of building HVAC systems. Jetex provides the most suitable, energy-optimized air handling units for any project, from large modular solutions to compact single units.

Key Advantages

Customization: Tailored in size, capacity, component types, and configuration for unique requirements
Scalability: Designed for future expansion or reconfiguration without complete replacement
Performance: Optimal performance for specific environments with better air quality and energy efficiency
Quality Construction: High-quality materials ensure durability and long service life

Technical Specifications

Model No.	Jetex AHS series
Type	Air Handling Unit
Air Pipe Material	Galvanized
Mounting	Vertical or ceiling mounted
Operating Voltage	380/400 VAC
Air Volume	2000~100000m³/H
Lifetime	Approximately 15 years
Fan Type	EC/AC Fan
Panel Sheet Material	Colored steel sheet and galvanized sheet
Panel Thickness	50mm
